Wide front
The wide front catches mud and spray thrown up by the tyre. As a mini mudguard, the M01 offers more coverage than classic small fenders while remaining compact on your bike.
The Unleazhed M01 MTB mudguard keeps mud and spray away from your face and the sensitive areas of your suspension fork. Compact, lightweight and available in a wide range of designs, it combines reliable protection with your personal style – Made in Germany.
€13.99
Available, delivery time: 1-3 days

Front MTB mudguard · M01
The Unleazhed M01 helps keep mud and spray away from your face and sensitive areas of your suspension fork. This compact mountain bike mudguard combines a wide front with close-fitting side wings: light, weather-resistant and quick to fit with cable ties.
All regular M01 designs in this category share the same functional construction.

Shape & specification
The modern geometry offers more functional coverage than classic small mini fenders. A low profile and broad side wings support protection while fitting neatly into your bike’s lines.
Function in detail
The wide front catches mud and spray thrown up by the tyre. As a mini mudguard, the M01 offers more coverage than classic small fenders while remaining compact on your bike.
Side cut-outs bring the tip closer to the wheel. Its modern silhouette integrates this front MTB mudguard into the lines of your suspension fork.
The side wings help shield the stanchion and dust-seal area, keeping spray and dirt away from sensitive fork components.
Rounded oval cable-tie guides spread tension across the material. Together with the side wings, they hold the M01 fender at its intended mounting points.

Material · Made in Germany
We use 1.2 mm polypropylene (1200 µm). The material can flex on contact and then return to its shape. It is weather-resistant, durable and made for wet, muddy trail days.
The UV-stable, scratch-resistant print follows the M01 silhouette, integrating the artwork into its shape. We manufacture the M01 locally in Germany. Its material is 100% recyclable, and local production keeps transport routes short.
Fit & use
The M01 is a universal MTB mudguard for conventional suspension forks on mountain bikes and e-MTBs. This includes suitable forks from RockShox, FOX, Suntour, DVO, Öhlins and Marzocchi. Check your specific fork, mounting points and tyre clearance.
For trail, enduro, all-mountain, cross-country and downhill: choose the mounting position to suit your bike and follow the M01 installation instructions.
Cable-tie installation
Four cable ties are included. The instructions show their correct routing and the extra mounting points for a rear triangle or reverse fork bridge.
Remove the M01 and four cable ties from the packaging. Push out the intended mounting holes and insert the cable ties as shown in the M01 instructions.
Slide the mudguard through the suspension fork from behind and align it with the fork bridge. Check front-tyre clearance and the space around moving parts.
Tighten the upper cable ties at the fork bridge first, followed by the side ties. Trim the excess ends and check that the mudguard is secure and the wheel turns freely before riding.
M01 · Video
Watch our M01 video. For the individual installation steps and fit on your bike, also refer to the linked PDF instructions.

World of MTB · M01
Our M01 mudguard features in World of MTB magazine’s Best of 2024.
Your own artwork
Want your own artwork instead of a regular design? The M01 can also be personalised. Explore the options in Custom MTB Parts.
Explore Custom MTB PartsYour questions
The M01 is intended for MTBs and e-MTBs with a conventional suspension fork, 24–29-inch wheels and tyres up to 3.0 inches wide. Mounting points and sufficient clearance determine fit. Check both on your bike; fat bikes and LEFTY forks are excluded.
Yes, you can fit the M01 to the rear triangle of a full-suspension bike. Here it helps shield the bearings and rear shock. We have provided additional mounting points on the mudguard for this purpose. Read the M01 installation instructions before fitting it at the rear and check clearance throughout the suspension travel.

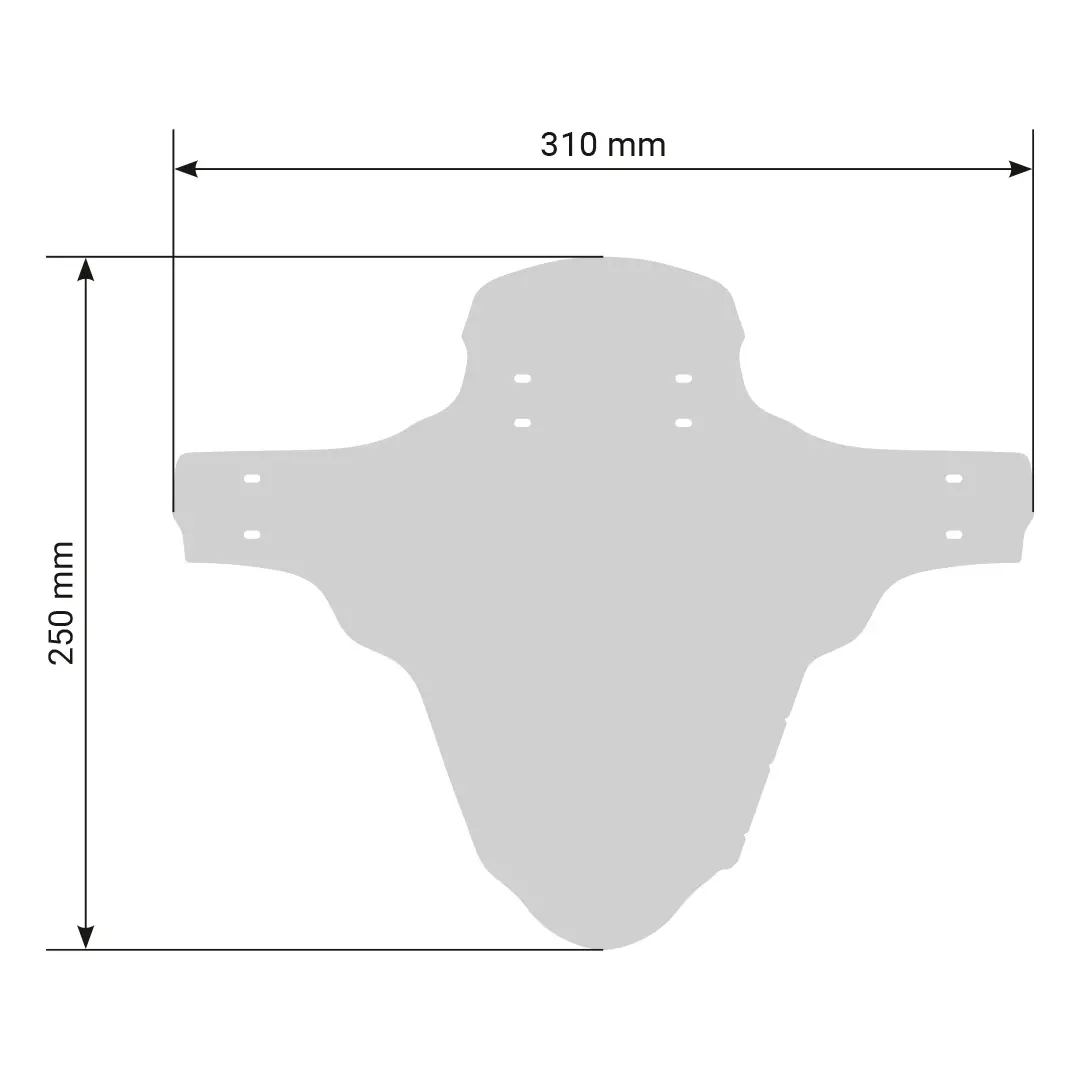

The flat M01 measures 310 mm wide and 250 mm long. It weighs 40 g and is made from 1.2 mm polypropylene. Bending and securing it to your bike creates its mounted shape.
You receive one M01 mudguard and four cable ties: two short and two long. The illustrated design is a product example; your selected version is shown in the purchase area.
Cable ties adapt to the intended mounting points on the fork bridge and fork sides. The guided openings support a secure fit. Their slim profile also creates a subtle, minimalist look on your bike. Check the mounting regularly and replace damaged ties.
The M01 is designed for MTB and e-MTB riding, including trail, enduro, all-mountain, cross-country and downhill. Its compact shape catches spray and mud without the length of a full-length mudguard.
Yes, the M01 can also be personalised. Custom MTB Parts takes you to the options for your own artwork. The regular designs in this category share the same functional M01 construction.
The installation section links directly to the PDF for the M01 with cable ties. It also covers rear-triangle installation and forks with a reverse fork bridge.
unleazhed GmbH · Dresdner Str. 313 · 01705 Freital · Germany
info@unleazhed.com · www.unleazhed.com
Compare mudguards
Compare models, coverage and mounting options in the mudguard finder.

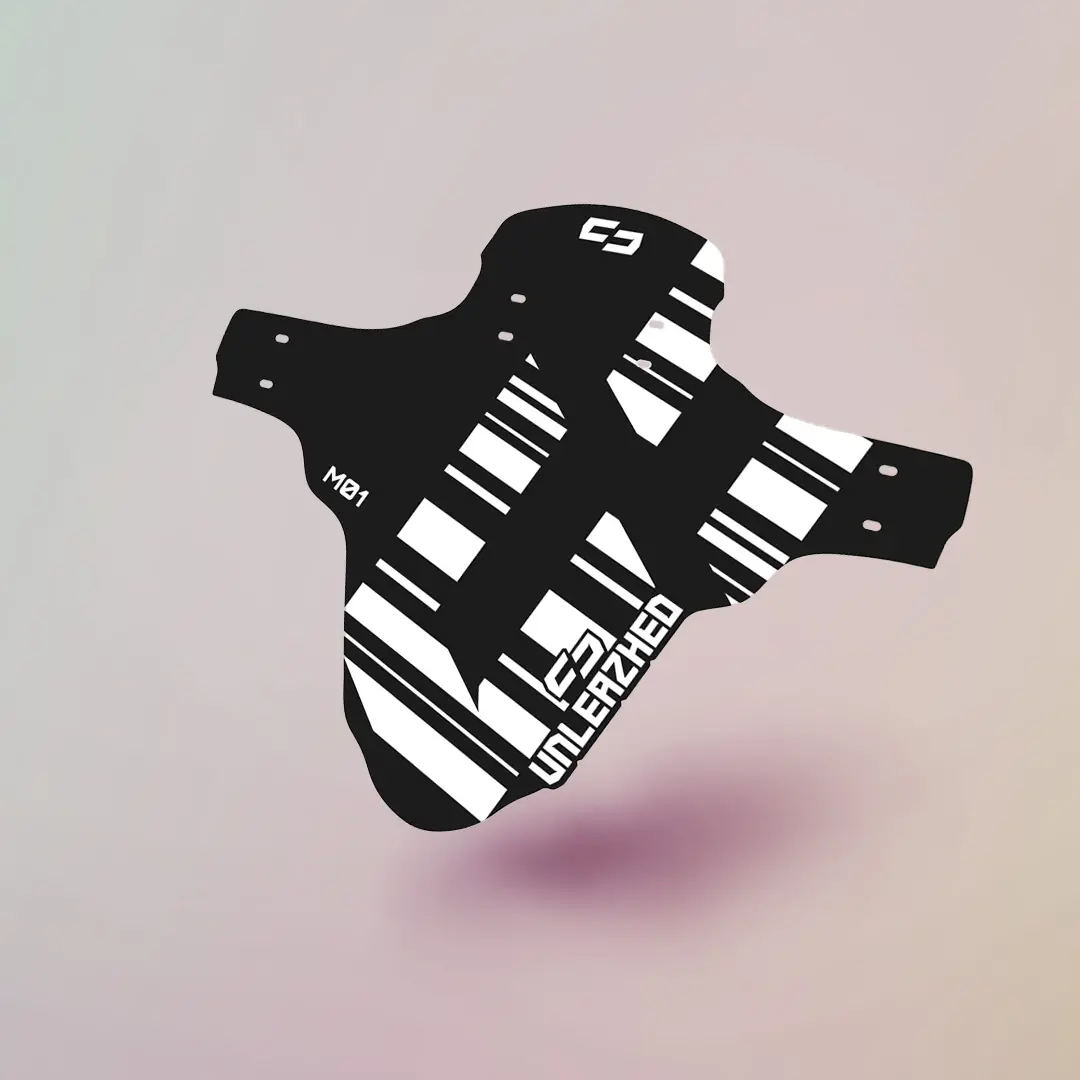

The Unleazhed M01 White combines crisp white contrasts with hard line changes and a tightly controlled barcode structure. The logo remains clear, yet becomes part of the complete composition. Aggressive bike language without visual clutter.
Design is not an afterthought applied at the end. It has been part of the M01 from the beginning.
Our shape brings the M01 closer to tyre and fork, while extended sides help shield the stanchions and seals. Four cable ties spread the load across the rounded mounts. White remains stable, light and clearly part of the bike geometry.
Material has to match the job. That is why the M01 is made from 1.2 mm weather-resistant polypropylene: light, resilient and ready for everyday riding.
We keep production in Germany and quality close to us. At the same time, the polypropylene used for the M01 is completely recyclable.
With the Unleazhed M01 White, your bike gets a clear style and a function you can rely on.
Unleazhed GmbH – Premium quality, Made in Germany
Highlights & Key Features M01
Product safety information in accordance with GPSR
Manufacturer:
unleazhed GmbH
Dresdner Str. 313, 01705 Freital, Germany
www.unleazhed.com
Email: info@unleazhed.com
| Area of use: | Trail, Enduro, All Mountain, Cross Country, Downhill |
|---|---|
| Bike type: | MTB, E-MTB |
| Design: | White |
| Dimensions: | 250 × 310 mm |
| Fit: | universal |
| Manufacturing: | Made in Germany |
| Material: | polypropylene (PP), 1.2 mm |
| Mounting: | with cable ties |
| Mounting position: | on the suspension fork, optionally at the rear wheel |
| Not suitable for: | fat bikes, LEFTY forks |
| Product type: | MTB mudguard |
| Properties: | weather-resistant, durable, 100% recyclable |
| Scope of delivery: | 1 M01 Mudguard, 4 cable ties |
| Tyre width: | up to 3.0 inches |
| Weight: | 40 g |
| Wheel size: | 24–29 inches |
