SHAPED FOR YOUR RIDE.
The elliptical geometry follows the tyre radius – for 27.5 and 29-inch wheels with tyres up to 3.0 inches.
Basic bundle MTB Mudguard long M09 BoltOn with holder
unleazhed GmbH
€0.00
Login via Klarna Express is currently not possible.
Product number:
M09-Base
No compromises. No excuses.
- Development and production mainly in Germany
- Products tested multiple times
- Fast shipping
- Convenient purchase on account
- 350,000+ customers trust Unleazhed
Check the model, model year, and image.
Compare your suspension fork with the specifications and the image on the Holder card. Depending on the generation, a different Holder is required.
500 mmLong / extended coverage
98 gMudguard without Holder
27.5–29″Wheels / tyres up to 3.0″
One MountOne Holder for M06 & M09
M09 Bolt On / long MTB mudguard
MORE PROTECTION.
MORE RIDES.
Rain, mud and long descents. With 500 mm of length, M09 brings more coverage to the front – bolted directly, securely integrated and ready for wet trails.
No cable ties. No straps.
Your bike. Your style. Your ride.
Shape / tyre clearance / water deflection
DISCOVER
THE HIGHLIGHTS.
Elliptical shape, High-Clearance End and Water Deflector 2.0: three details that bring protection and integration together.
HIGH-CLEARANCE END.
The raised end creates extra tyre clearance, including under heavy compression. Check the clearances on your specific bike.
WATER DEFLECTOR 2.0.
The integrated water deflector channels rising water and dirt to the sides and through the openings.

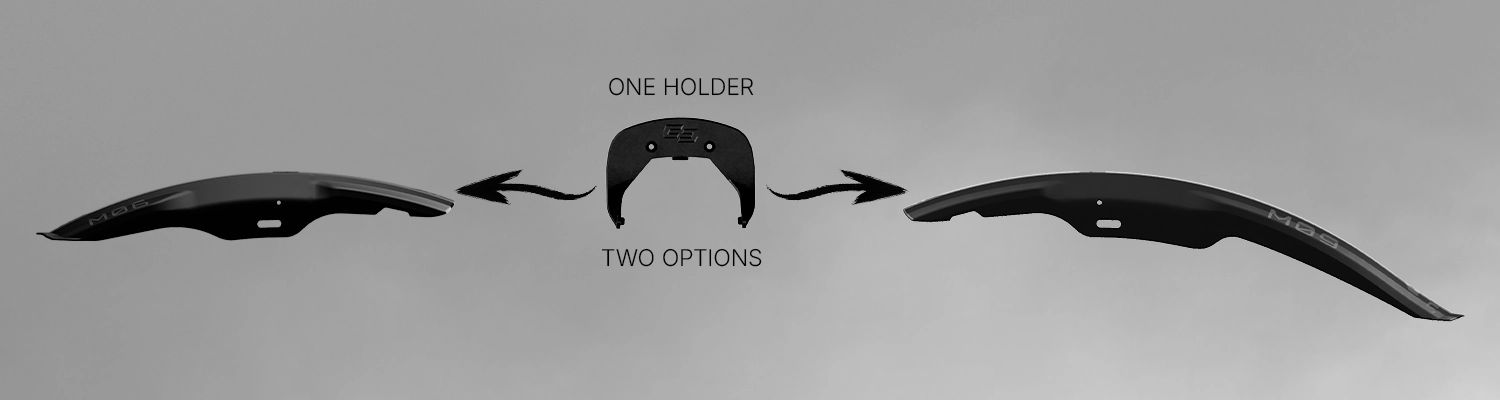

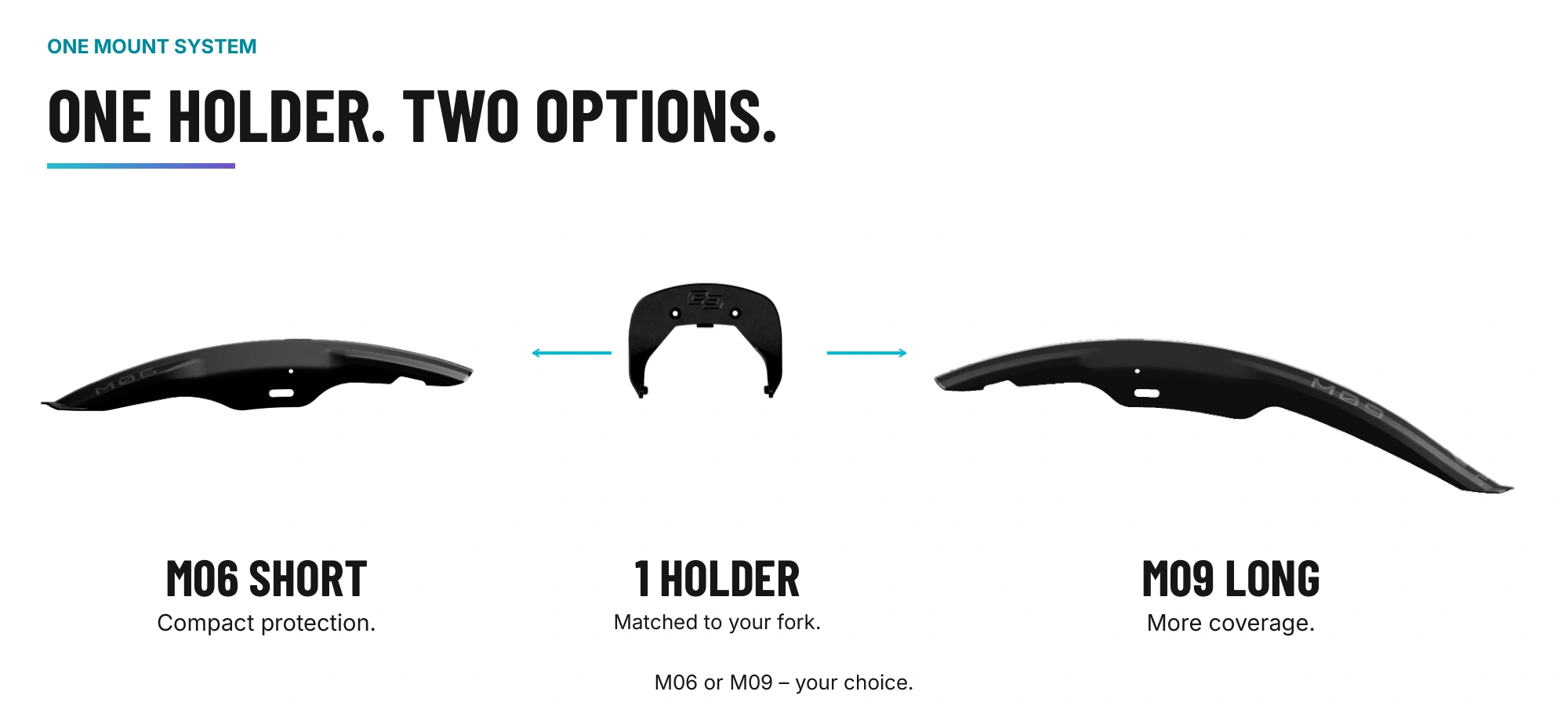

One Mount System
ONE HOLDER.
TWO OPTIONS.
One matching Holder connects your suspension fork to either mudguard length. Switch between M06 and M09 to suit the trail and weather. Quality metric threads make every swap secure and repeatable.
M06: COMPACT & DIRECT.
370 mm long. Performance-focused protection for dry, dusty and slightly damp conditions.
Discover M06 Bolt On ↗M09: MORE COVERAGE.
500 mm long. More protection in wet, muddy and demanding trail conditions.
Discover M09 Bolt On ↗Unleazhed 3D Black Line
PRECISE FIT.
SOLID CONNECTION.
Each Holder is designed for a specific fork platform. Its form-fitting construction and targeted reinforcement create a precise, play-free connection with low weight.
.webp)
Form & Force Lock Interface
A form-fitting, force-locking connection for high stiffness and a secure fit.
EDGE-Lock Solution
Engages precisely with the fork arch and helps position the Holder before fastening.
Secure Bolt Mount
Quality bolts provide a consistently stable mount.
Exchange Ready Inserts
Metric threaded inserts for repeated swaps between M06 and M09.
M06 Short / M09 Long
SHORT OR LONG?
YOUR TRAIL DECIDES.
Both mudguards use the same One Mount System. The differences are length, weight and coverage – choose the protection that suits your conditions.
| Specification | M06 Short | M09 Long |
|---|---|---|
| Length | 370 mm | 500 mm |
| Weight without Holder | 68 g | 98 g |
| Width at the top | 80 mm | 80 mm |
| Height at the centre | 55 mm | 60 mm |
| Conditions | Dry, dusty, slightly damp | Wet, muddy, demanding |
| Protection | Compact coverage | Extended coverage |
| Wheels / tyres | 27.5–29 inches / up to 3.0 inches | 27.5–29 inches / up to 3.0 inches |
| Mounting | Bolt On / One Mount System | Bolt On / One Mount System |
Selected FOX & RockShox suspension forks
MATCHING HOLDER.
MATCHING FORK.
The fork brand alone is not enough. The exact model, model year and version matter. Compare the image on the relevant Holder card too.
DIFFERENT GENERATION?
DIFFERENT HOLDER.
Forks with similar names can require different Holders. Check suffixes such as AWL, Rhythm or SL, and whether your Psylo uses the Standard or FULLFNDR-A1 lower-leg assembly.
Only choose the version whose details and image match your suspension fork. Not suitable for fat bikes or LEFTY forks.
Go to Holder selection ↗With Holder / without Holder
START YOUR SYSTEM.
OR SWITCH IT UP.
New to the One Mount System? Choose the base package with the matching Holder. Already have the correct M06/M09 Holder on your suspension fork? Choose the mudguard-only version.
BASE PACKAGE WITH HOLDER.
- 1 × M09 mudguard
- 1 × selected, fork-specific Holder
WITHOUT HOLDER.
1 × M09 mudguard for an existing, matching One Mount Holder.
Bolt On / no cable ties or straps
BOLTED DIRECTLY.
CLEANLY INTEGRATED.
The fork-specific Holder and bolts create the connection. In the One Mount System, the matching Holder stays in place as the shared base for M06 and M09.
CHECK YOUR FORK.
Compare the model, model year and image on the Holder card.
CHOOSE YOUR PACKAGE.
Base package with Holder, or mudguard without Holder for your existing system.
BOLT IT ON.
Mount the selected Holder to the matching fork and attach the mudguard.
CHECK THE FIT.
Check the mounting and tyre clearance before riding.
This overview does not replace fork-specific installation instructions. Contact us if you have questions about fitting.
Ask Unleazhed about installation ↗BIKE PARK LIFT? PLEASE NOTE.
M06 and M09 are currently not designed for lift systems such as those used at Bikepark Winterberg. The loads can damage the Holder. Remove the mudguard before using these lifts, or use the M02 instead.
Discover M02 as an alternative ↗Recycled material / Engineered in Germany
THOUGHTFULLY DESIGNED.
MADE TO MEET DEMAND.
M06 and M09 are made from recycled material and developed in Germany. The fork-specific Holders use the Unleazhed 3D Black Line process, with complex reinforcement structures for high stiffness and low weight.
ON-DEMAND, LESS OVERPRODUCTION.
Modern manufacturing allows Holders to be produced according to demand. This reduces unnecessary overproduction and additional storage and transport.
CLEAN FORM. SOLID ENGINEERING.
Ultimate Black in matt and gloss complements your bike’s lines. Direct bolt mounting and a precise, form-fitting connection bring function and style together.
Technical data / package contents
EVERY DETAIL.
AT A GLANCE.
| Specification | M09 |
|---|---|
| Mounting | direct Bolt-On mounting, no cable ties or straps |
| Features | stiff, lightweight, elliptical shape, High-Clearance End, Water Deflector 2.0 |
| Bike type | MTB, E-MTB |
| Colour | Ultimate Black, matt and gloss |
| Weight | 98 g excluding Holder |
| Compatibility | selected FOX and RockShox suspension forks; check model and model year |
| Wheel size | 27.5–29 inches |
| Package contents | Base package: 1 M09 mudguard + 1 selected Holder; mudguard-only version: 1 mudguard |
| Material | Recycled material |
| Mounting position | front, on the suspension fork |
| Not suitable for | Fat bikes, LEFTY forks |
| Fit | fork-specific, using the matching Holder |
| Product type | bolt-on MTB mudguard |
| Tyre width | up to 3.0 inches |
| Length | 500 mm |
| Width at the top | 80 mm |
| Height at the centre | 60 mm |
Questions about the M09 Bolt On MTB mudguard
YOUR QUESTIONS.
CLEAR ANSWERS.
Which suspension forks fit the M09 Bolt On?
Selected FOX and RockShox models. Check the exact model, model year and image on the Holder card. Different generations may require a different Holder. Go to Holder selection ↗
What is the difference between M06 and M09?
M06 is short: 370 mm and 68 g without Holder, with compact protection for dry, dusty and slightly damp conditions. M09 is long: 500 mm and 98 g without Holder, with more coverage in rain and mud. Both use the One Mount System.
Does it fit 27.5 and 29-inch wheels?
Yes. Both models are designed for 27.5–29-inch wheels and tyres up to 3.0 inches. A compatible suspension fork and the correct Holder are also essential. Not suitable for fat bikes or LEFTY forks.
Do I need cable ties or straps?
No. The mudguard bolts directly to the suspension fork using the matching Holder. The form-fitting connection is designed for the specific fork platform.
Can I switch between M06 and M09?
Yes. With the One Mount Holder that matches your fork, you can use either length. Metric threaded inserts allow repeated swaps. Discover the other mudguard ↗
What does High-Clearance End mean?
The raised end creates extra space between the tyre and mudguard. Check the clearances on your specific bike after installation.
What does Water Deflector 2.0 do?
The integrated deflector channels rising water and dirt to the sides and through the mudguard openings. It supports protection in wet conditions.
Is a Holder included?
The base package includes one selected Holder. The version without Holder contains the mudguard for an existing, matching One Mount Holder. Check your package selection above.
How are the mudguard and Holder made?
M06 and M09 are made from recycled material and developed in Germany. Holders are produced according to demand using the 3D Black Line process to reduce overproduction and additional storage and transport.
Can I use it on a bike park lift?
M06 and M09 are currently not designed for lift systems such as those used at Bikepark Winterberg. The loads can damage the Holder. Remove the mudguard first, or use the M02 instead. Discover M02 ↗
M09 Bolt On / your next ride
MORE COVERAGE.
READY FOR THE WET.
Choose your package and the matching Holder for your suspension fork.
Go to M09 purchase options ↗One Mount System / M06 & M09
YOUR SYSTEM.
MORE OPTIONS.
Add the other mudguard length and keep using your existing Holder that matches your suspension fork.
M06 Short ↗ All MTB mudguards ↗unleazhed GmbH · Dresdner Str. 313 · 01705 Freital · Germany
info@unleazhed.com · www.unleazhed.com
Product information "Basic bundle MTB Mudguard long M09 BoltOn with holder"
Unleazhed M09 Bolt-On Mudguard
The Unleazhed M09 Bolt-On Mudguard was designed for riders seeking maximum protection in wet, muddy, and challenging conditions. Thanks to its extended design, the M09 offers significantly greater coverage and effectively protects both rider and bike from water, mud, and kicked-up debris.
Screwed directly onto the suspension fork, it creates a particularly stable and clean integration - without any cable ties or additional adapter solutions.
Quick Facts
- Directly bolted-on MTB mudguard
- Long version for maximum protection
- Optimized for wet and demanding conditions
- One Mount System for M06 & M09
- Form-fitting mounts
- Made from recycled material
Maximum protection
The extended design of the M09 provides exceptionally high coverage and reliably reduces splash water and dirt, even in aggressive trail conditions.
Thanks to its elliptical shape, the mudguard optimally follows the radius of the tire and combines maximum protection with ample tire clearance.
The raised end of the mudguard creates additional clearance during heavy compression and prevents contact between the tire and the mudguard, even under harsh conditions.
Form-fit Bolt-On Mounts
The specially developed mounts are precisely tailored to the respective fork platform and ensure a precise, play-free connection between the fender and the suspension fork.
Manufactured using the Unleazhed 3D Black Line process, they enable highly complex reinforcement structures and exceptional stiffness while maintaining a low weight.
Thanks to this modern manufacturing method, the mounts can be produced on demand. This allows us to avoid unnecessary overproduction and reduce additional storage and transport distances, further contributing to more sustainable production.
One Mount System
Thanks to our modular One Mount System, both the short M06 and the long M09 fenders can be used with the same mount.
The changeover is quick, secure, and repeatable via high-quality metric threads.
Water Deflector 2.0
The integrated Water Deflector 2.0 directs water specifically to the sides, further improving protection in extremely wet conditions.
Important Note on Selection
The correct mount is determined by the specific suspension fork.
Therefore, please be sure to note:
- The exact model name
- The correct model year
Different mounts may be required depending on the generation.
Greenfacts
- Made from 100% recycled material 100% recycled material.
- Produced in a resource-saving way on state-of-the-art machinery. Thus we achieve a CO2 saving
Key Features
- Full mudguard for maximum protection against dirt and stone chips
- Innovative Water Wedge© prevents water and dirt from rising to the top of the mudguard
- Stiff and lightweight
- Suitable for mountain bikes with the given suspension fork
- Wheel sizes from 27,5 " to 29 "
- Maximum tire width: 3.0 "
- Not suitable for fat bikes or LEFTY fork
- Engineered and designed in Germany
Specifications 9
- Weight: 98 g plus holder
- Length: 500 mm
- Width top: 80 mm
- Height center: 60 mm
- Color: ultimate black matt and glossy
Information on product safety according to GPSR
Manufacturer:
unleazhed GmbH
Dresdner Str. 313, 01705 Freital, Germany
www.unleazhed.com
E-Mail: info@unleazhed.com
Properties "Basic bundle MTB Mudguard long M09 BoltOn with holder"
| Bike type: | MTB, E-MTB |
|---|---|
| Colour: | Ultimate Black, matt and gloss |
| Compatibility: | selected FOX and RockShox suspension forks; check model and model year |
| Fit: | fork-specific via the matching holder |
| Material: | 100% recycled material |
| Mounting: | direct bolt-on mounting without cable ties or straps |
| Mounting position: | at the front of the suspension fork |
| Not suitable for: | fat bikes, LEFTY forks |
| Product type: | bolt-on MTB mudguard |
| Properties: | rigid, lightweight, elliptical shape, high-clearance end, Water Deflector 2.0 |
| Scope of delivery: | 1 M09 Mudguard, 1 selected holder |
| Tyre width: | up to 3.0 inches |
| Weight: | 98 g plus holder |
| Wheel size: | 27.5–29 inches |
